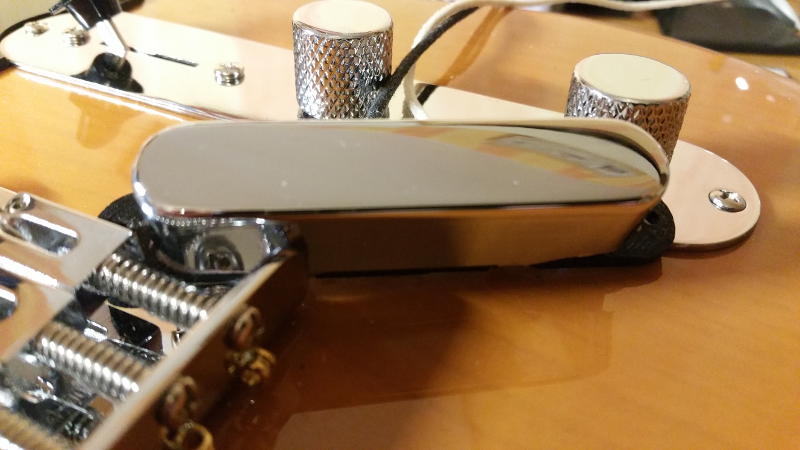

Tele Neck Model Standard

Due to its classic construction with six individual AlNiCo V magnets, this pickup delivers a great tele-twang. By using caps made of nickel silver, the treble is retained and the typical sound is produced. Rounded off by the vintage-style cotton-coated connection cable, you get a hand-wound pickup at an absolutely fair price. In more technical terms, the Tele Neck standard delivers a Tele single-coil sound that emphasizes frequencies around 5.3kHz. Due to this emphasis, the sound of this pickup is perceived as sharp.
All pickups are completely handcrafted by me. To ensure quality, all pickups are electrically measured after completion. Each pickup is given a serial number and the associated measured values are recorded in a database.

Technical data

Resistance: approx. 4,3kΩ
Inductance: approx 1,25H

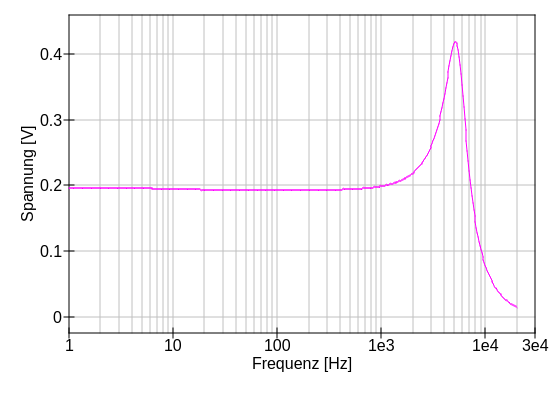

Resonance frequency: approx. 5,3 kHz (simulated see frequency response)
Treated with paraffin wax against microphony
Cotton connection cable
Sound: sharp
Magnet material: Alnico 5
Coil wound counterclockwise (CCW))
Magnetic polarity: north pole above
