Tele Bridge Model Standard

Due to its classic structure with six individual AlNiCo V magnets, this pickup delivers a great tele-twang. This sound is supported by the mounted baseplate. Rounded off by the vintage-style cotton-sheathed connection cable, you get a hand-wound pickup at an absolutely fair price. In more technical terms, the Tele Bridge Standard delivers a typical Tele single coil sound that emphasizes the frequencies around 4.4 kHz. With this emphasis, the sound of this pickup is perceived as metallic. All pickups are completely handcrafted by me. To ensure quality, all pickups are measured electrically after completion. Each pickup is given a serial number and the associated measured values are recorded in a database.

Technical data

Resistance: approx. 5,3kΩ
Inductance: approx 1,8H

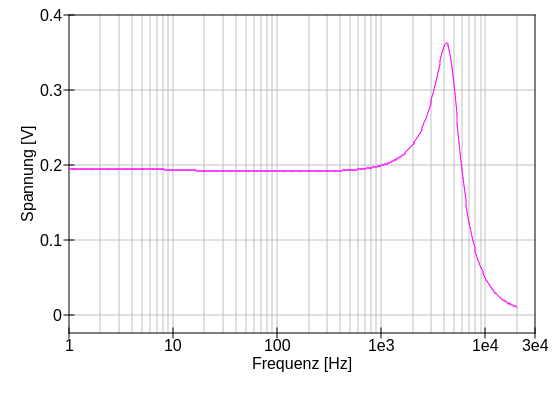

Resonance frequency: approx. 4,4 kHz (simulated see frequency response)
Treated with paraffin wax against microphony
Cotton connection cable
Sound: metalic
Magnet material: Alnico 5
Coil wound clockwise
Magnetic polarity: south pole above
Baseplate
