Singlecoil Model Cool CW/CCW

Built like the classic pickups with six individual magnets, this pickup delivers a typical single coil sound. Each string is individually scanned by one of the six magnets, which results in perfect string separation.
Winding the coil by hand creates the crisp, emphasized highs and open sound of this pickup.
Due to the design of the pickup, the frequencies around 4 kHz are particularly emphasized. The resulting sound can be described as an brilliant sound.
All pickups are completely handcrafted. To ensure quality, all pickups are measured electrically after completion. Each pickup is given a serial number and the associated measured values are recorded in a database.

Technical data

Resistance: approx. 3,7kΩ
Inductance: approx 0,9H
Resonance frequency: approx. 6,5 kHz (simulated see frequency response)
Treated with paraffin wax against microphony
Cotton connection cable
Sound: spiky
Magnet material: Alnico 5
CW:
Coil wound clockwise (CW Clockwise)
Magnetic polarity: south pole above
CCW:
Coil wound counterclockwise (CCW Counterclockwise)
Magnetic polarity: north pole up

Sound samples

SC-Cool Position Bridge Clean

SC-Cool Position Bridge-Middle Clean

SC-Cool Position Middle Clean

SC-Cool Position Middle-Neck Clean

SC-Cool Position Neck Clean

SC-Cool Position Bridge Chords

SC-Cool Position Middle Chords

SC-Cool Position Neck Chords

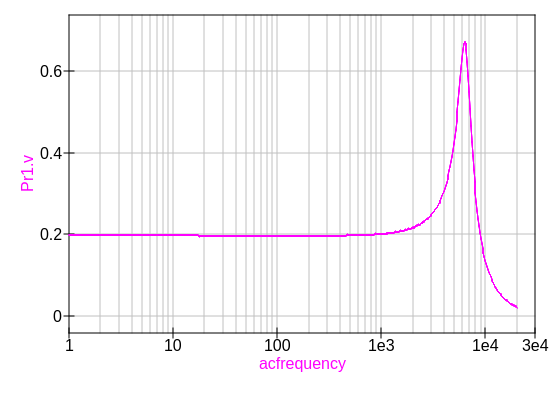

Frequency response

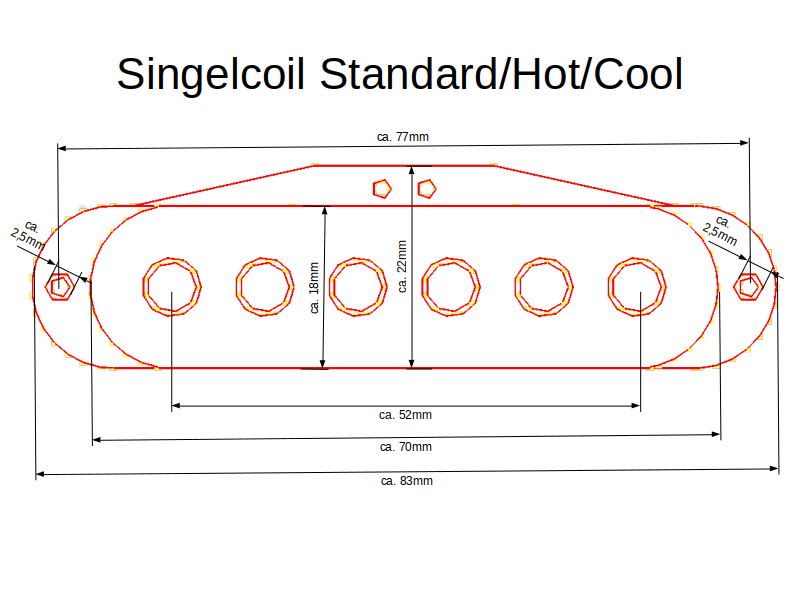

Dimensions

Suggested combinations

Here are a few suggestions for combining the pickups. By combining CW and CCW models, you can achieve hum-free setups in the intermediate Positions of the pick-up selector switch.

Setup	Bridge	Middle	Neck
Hot	Hot CW	Hot CCW	Hot CW
Modern	Hot CW	Hot CCW	Standard CW
Vintage	Standard CW	Standard CCW	Cool CW
Cool	Cool CW	Cool CCW	Cool CW

Pictures

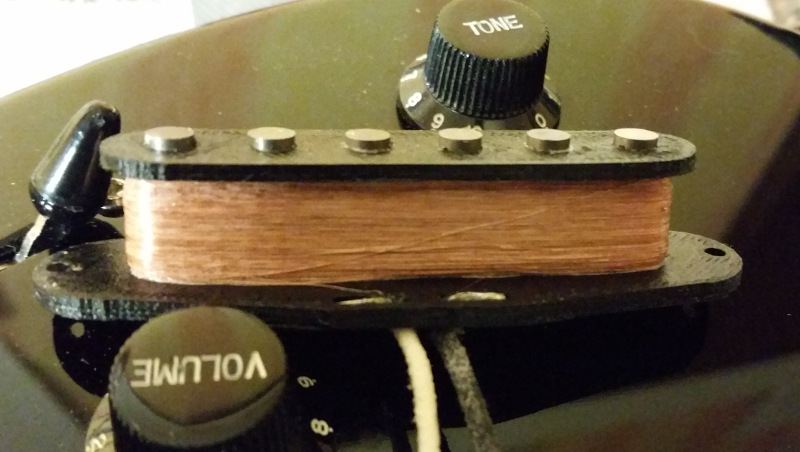

black

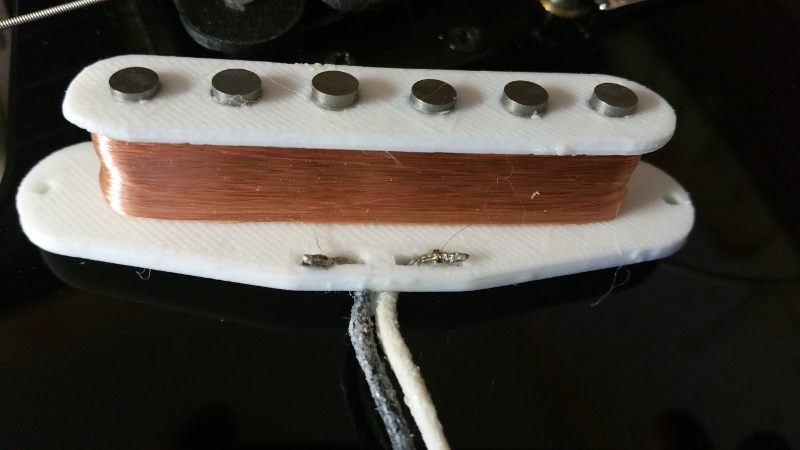

white
