Humbucker TrueSplit Standard

The humbucker TrueSplit Standard offers a typical humbucker sound and an authentic single coil sound. The humbucker sound is in the metallic range (the resonance frequency in humbucker operation is around 4.5 kHz). The single coil has a sound that can be described as sharp (the resonant frequency in single coil operation is around 6 kHz). Its construction, two single-coil coils each with six individual magnets, results in the authentic single-coil sound. This pickup is the right choice for anyone who wants as many sound variations as possible from their guitar. You have the option of creating humbucker and single-coil sounds with one pickup without having to make major compromises in the authenticity of the sounds.

Technical data humbucker in serial operation mode

Resistance: approx. 7,1kΩ
Inductance: approx 1,9H

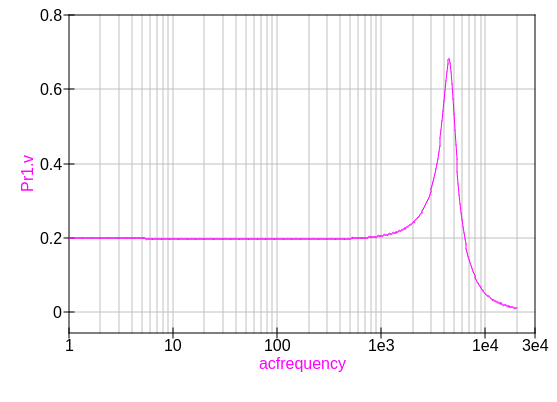

Resonance frequency: approx. 4,5kHz (simulated see frequency response)
treated with paraffin wax against microphonics
4-core shielded connection cable
Sound: metallic
Magnet material: Alnico 5

Technical data humbucker in SingleCoil operation mode

Resistance: approx. 3,5kΩ
Inductance: approx 1H

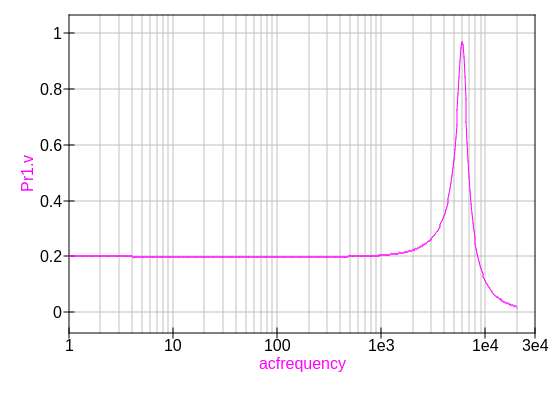

Resonance frequency: approx. 6kHz (simulated see frequency response)
treated with paraffin wax against microphonics
4-core shielded connection cable
Sound: metallic
Magnet material: Alnico 5
