Humbucker TrueSplit Hot

The humbucker TrueSplit Hot offers a typical humbucker sound and an authentic single coil sound. The humbucker sound can be described as brilliant (the resonance frequency in humbucker operation is around 3.1 kHz). The single-coil sound can be described as metallic (the resonant frequency in single-coil operation is around 4.2 kHz). Its construction, two single-coil coils each with six individual magnets, results in the authentic single-coil sound. This pickup is the right choice for anyone who wants as many sound variations as possible from their guitar. You have the option of producing humbucker and single-coil sounds with one pickup without having to make major compromises in the authenticity of the sounds. The TrueSplit Hot is wound a little hotter than the TrueSplit Standard and thus delivers a slightly higher output.

Technical data humbucker in serial operation mode

Resistance: approx. 11kΩ
Inductance: approx 4H

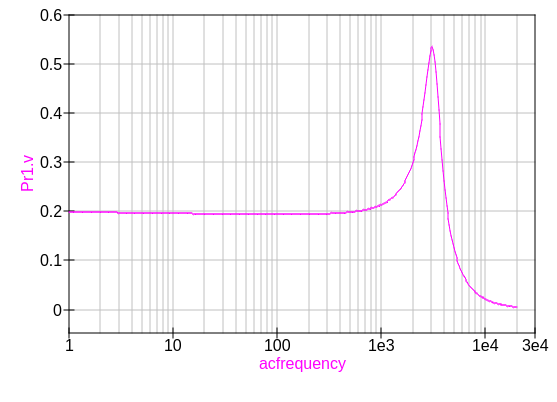

Resonance frequency: approx. 3,1kHz (simulated see frequency response)
treated with paraffin wax against microphonics
4-core shielded connection cable
Sound: brilliant
Magnet material: Alnico 5

Technical data humbucker in SingleCoil operation mode

Resistance: approx. 5,5kΩ
Inductance: approx 2H

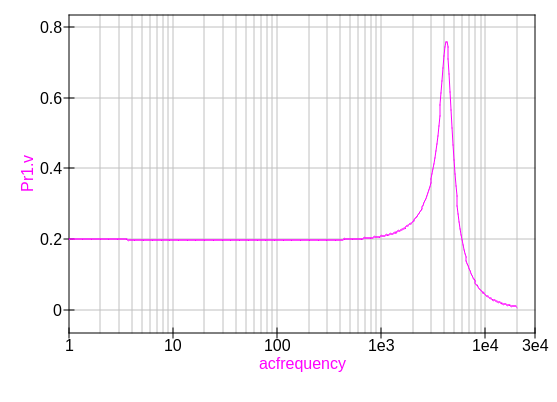

Resonance frequency: approx. 4,2kHz (simulated see frequency response)
treated with paraffin wax against microphonics
4-core shielded connection cable
Sound: metallic
Magnet material: Alnico 5
